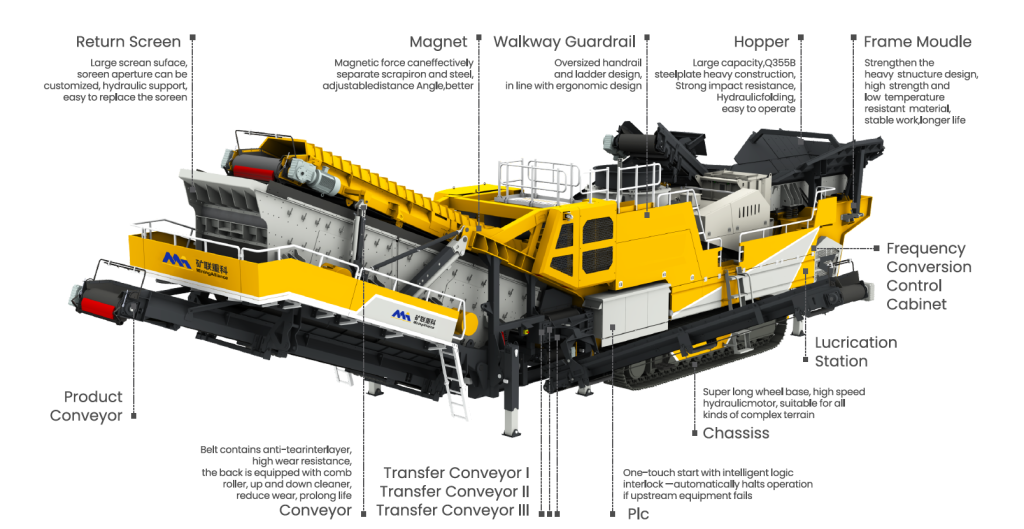

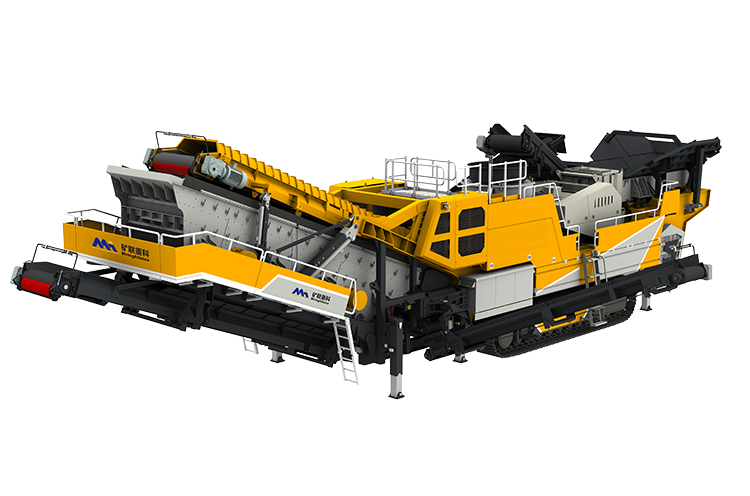

MAM integrates vibrating feeder, jaw crusher, multi-cylinder hydraulic cone crusher, and three-layer dual-stage screen into a single frame, forming a mobile station that achieves the crushing and screening functions of a modular hard rock crushing production plant. This design effectively reduces equipment costs, supplies higher capacity, and features a compact footprint.
| Model | TX4 |
| Feeder | |
| Feeding height(mm) | 4100 |
| Feeder width×length(mm) | 1100×3737 |
| Power(kw) | 2×3.7 |
| Jaw Crusher | |
| Model | C113 |
| Feeding Size (mm) | 1130X750 |
| Power(kw) | 110 |
| Cone Crusher | |
| Model | HP300 |
| Diameter of Cone | 1120 |
| Power(kw) | 250 |
| Return screen(double segment) | |
| layer number of mesh | 3 |
| Vibrating screen width×length(mm) | 2000×2500/2000×3500 |
| Power(kw) | 4×6kw |
| Conveyor | |
| Main conveyor width×length(mm) | 1200×15500 |
| Finished material side conveyor width×length(mm) | 500×6125 |
| Under screen conveyor width×length(mm) | 1200×7570 |
| Return conveyor1 width×length(mm) | 1000×9760 |
| Return conveyor2 width×length(mm) | 1000×6260 |
| Parameters | |
| Total Power(kw) | 452 |
| Processing capacity(t/h) | 200-400 |
| Speed(km/h) | 0.6-1 |
| Total Weight(t) | 115 |
| Transportation size(mm) | 20700×5100×4000 |
