Traditional models often demand specialized skills, constant manual adjustments, and lead to costly downtime. Now, Zhengzhou MiningAlliance optimizes the mobile crushing operation with smarter, user-friendly solutions for maximum efficiency and simplicity.

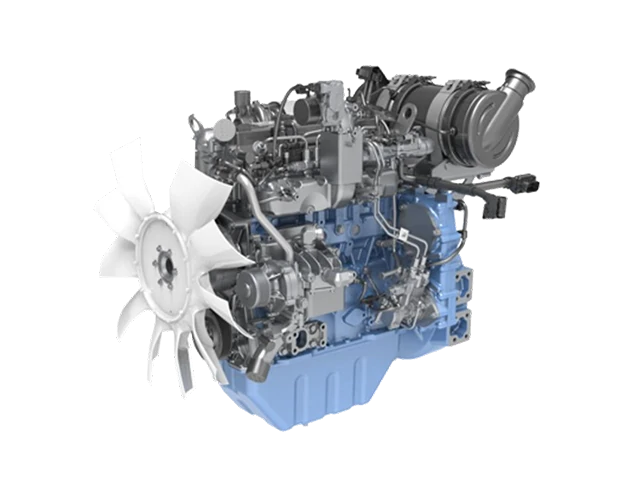

Engine Module
MAM Each mobile tracked crusher machine is equipped with Weichai Power, China’s leading engine brand known for its stable and reliable performance. It also offers global warranty services, ensuring worry-free after-sales support.
Meets National Emission Standards
Equipped with an electronically controlled engine, our product outperforms competitors’ mechanical engines with superior performance and higher fuel efficiency. Most importantly, it complies with China’s mandatory National IV (Euro IV-equivalent) emission standards, eliminating any risk of production shutdowns due to environmental regulations.
Coupling
Featuring premium German-imported hydraulic pumps, the system utilizes Germany’s KTR couplings for the pump-engine connection, ensuring superior quality and reliability.
Powerful Motor
The engine has a displacement of 3.9-5.9L and a power output of 102-150kW.
Engine Hood
The engine hood features an full-access opening design, side and top panels can be opened for easy engine maintenance. The front and rear ends of the hood are designed with a grille and hollow structure, ensuring smooth airflow and excellent engine heat dissipation. The maintenance space is spacious, and each door is equipped with a cushioning anti-collision design.

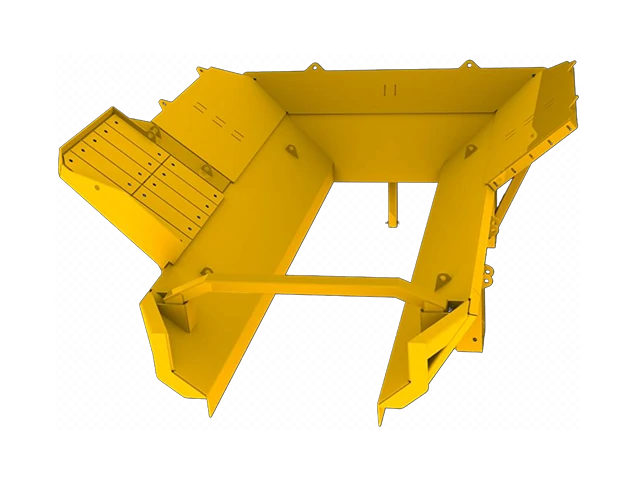

Extra-Wide Feeding Width
The effective width is 90cm, which greatly improves the stability of feeding.
Large Capacity
The 7m³ buffer hopper stabilizes uneven jaw crusher discharge, ensuring consistent cone crusher feed for maximized throughput and stable production.
Buffer Bridge
Designed to withstand impact from large material blocks. Effectively buffer the impact of large material on the feeding belt, significantly extending the service life of the feeding belt.
Rectangular Limiting Beam
There is a rectangular limit beam at the opening of the silo, which can effectively control the height of the material layer on the one hand, and effectively strengthen the connection strength of the silo on the other hand, making it more impact-resistant.
Ultimate Impact Resistance
The silo frame is made of 0355B steel plate, which has sufficient strength to withstand the impact of materials and is resistant to low temperatures. The front is narrow and the back is wide, which can not only effectively improve the stability of feeding, not easy to leak, but also increase the aesthetics of the design.
Hydraulic Composite Folding Design
The lower part of the silo is a whole, and the upper part adopts the folding mode. On the one hand, it effectively increases the volume of the silo during work and reduces the height during transportation; on the other hand, it also ensures the overall impact resistance of the silo, making it more stable during work. Simplifies operation between working and transport states.

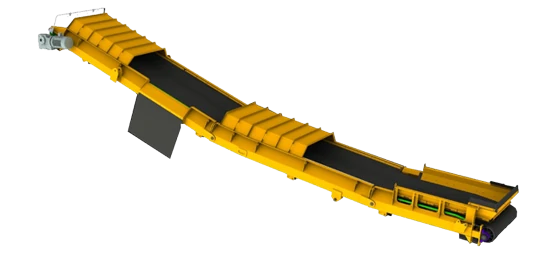

Drive System
Motor + K-series right-angle gear reducer for stable performance, superior heat dissipation, and easy maintenance. Outperforms motorized pulleys with higher power reserves, greater driving force, and longer service life, eliminating issues like structural stress and overheating.
Comb-Type Roller
Full comb-type design on the return side to automatically remove material buildup from the belt.
Dual Cleaning System
Equipped with primary and secondary cleaners to prevent material carryback and belt damage.
EP Polyurethane Conveyor Belt
5-ply construction with 300 N/mm² tensile strength per layer, low elongation, and minimal long-term deformation.
Heavy-Duty Roller
Seamless steel tubes from Xuzhou Halo for high precision and minimal radial runout. Premium bearings (HRB/ZWZ/LYC) for reduced friction and extended lifespan. Anti-runoff idlers to ensure belt tracking stability.

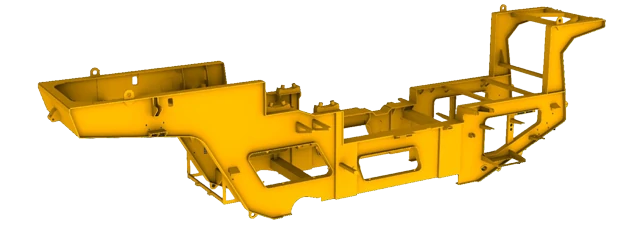

Heavy-duty Structural Design
MAM tracked crusher stress zone adopts a unique double-web box beam structure design, which is different from the single-web structure design of other manufacturers. The rigidity and strength are greatly enhanced, which is professional for heavy-duty and high-impact working conditions such as jaw crushers. The whole machine is more solid, stable and has a longer service life.
Finite Element Analysis
The overall frame is verified by CAE analysis using 3D software, and the places with the greatest working stress and the weak links of the structural parts are strengthened. Improve the impact resistance of the frame, making the whole machine more stable and longer in service life.
Extra-wide Wing Plate And Extra-thick Belly Plate
The strength and rigidity of the main frame mainly depend on the width and thickness of the longitudinal and transverse plates of the body. MAM adopts an ultra-thick and ultra-wide plate design with more safety, and the key parts adopt an ultra-strong rib structure design. The overall frame impact resistance and service life exceed those of peer products by more than 20%.

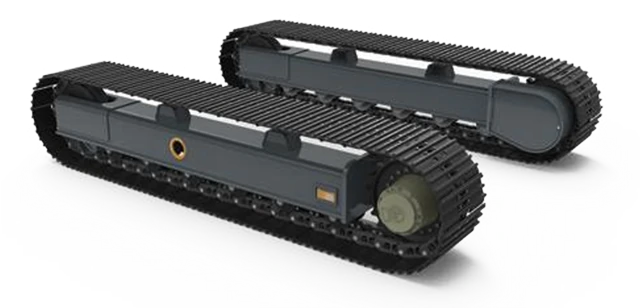

Ultra-long Wheelbase Crawler Chassis
The whole machine has a larger ground contact area, a smaller ground contact pressure, and better stability during operation.
Adopts Internationally Renowned Brands
Equipped with planetary gear reducer and high-speed plunger hydraulic motor.
Higher Driving Torque
Large driving torque, easily realizes turning action on the spot on soft ground, and can be applied to walking and turning requirements in various harsh environments.
Wireless Control
The whole machine adopts Taiwan brand handheld wireless remote control operation, which is lightweight and easy to operate. It can realize wireless remote control of the roof belt, and the wet control distance reaches 100 meters.
Smart Feeding System
The intelligent feeding system integrates high-precision German-imported level sensors with PLC-controlled feeding logic to achieve smart material feeding, effectively preventing both material blockage shutdowns and insufficient feeding scenarios, thereby ensuring stable equipment operation at optimal performance levels with consistent production output.
One-touch Start & Stop
Featuring one-button operation for effortless starting and stopping, with automatic fault diagnosis and display for maximum user convenience.

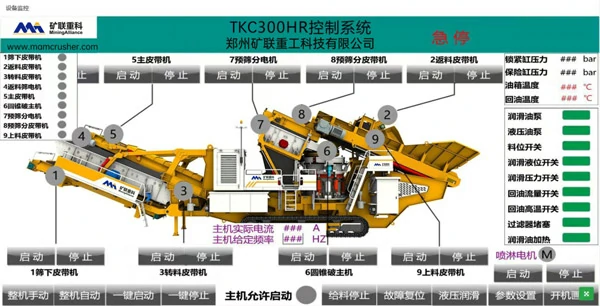

Variable Frequency Start & Touchscreen Control
The main unit features soft-start via frequency conversion, paired with a Siemens PLC controller for intuitive touchscreen operation.
Dual Operation Modes
Freely switch between manual independent control and fully automated integrated control based on operational needs.
Intelligent Interlocking
In case of a single-process malfunction, the system automatically halts feeding and locks the feed-stop status, preventing material pile-ups/jams that could damage equipment.
Interlocked Multi-Machine Protection
For connected production lines, the system features cross-equipment interlocking - if downstream machinery (e.g., hard rock processing equipment) fails, upstream feeders automatically lock out to prevent cascading damage.
