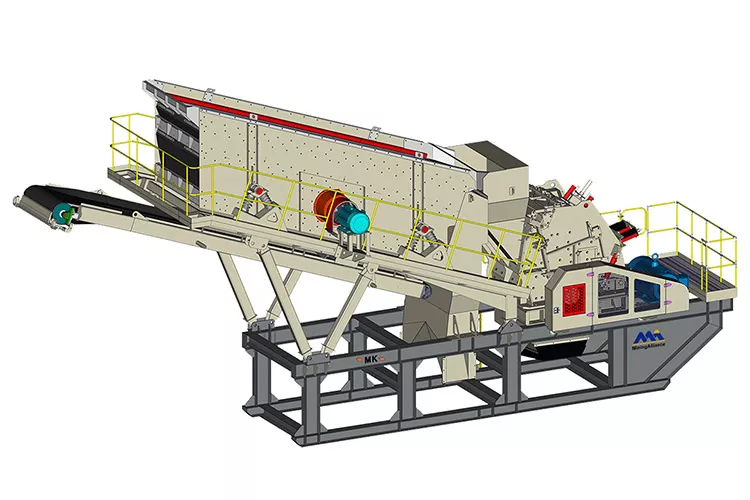

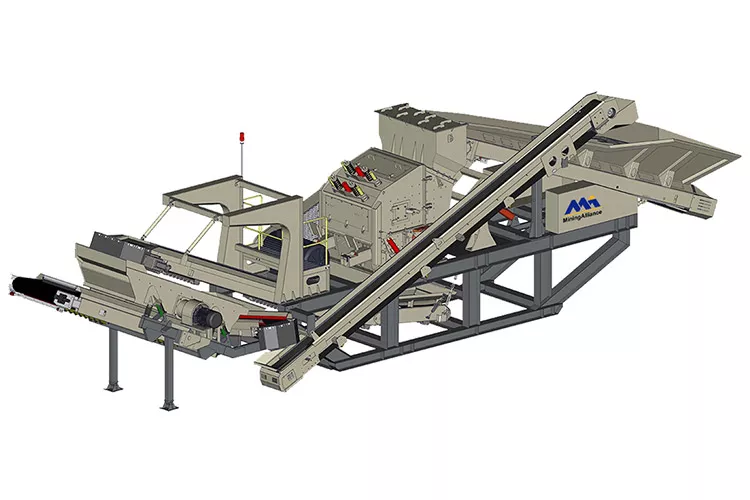

MK series semi-mobile modular impact crusher main machine adopts hydraulic impact crusher, and spray device can be optionally equipped. It is mainly used for secondary crushing of medium-soft stone. The whole machine has stable performance, convenient transfer, and good crushing particle shape.
| Model | MK1315C | MK1415C | MK1315I | MK1213I | MK1213I-2M | MK1315I-2M |
|---|---|---|---|---|---|---|
| Vibrating Feeder | FK1345 | FK1345 | / | 3SKX1860 | 3SKX2160 | |
| Crushing Equipment | CI5X1315 | CI5X1415 | PFW1315Ⅲ | CI5X1213 | CI5X1213M | CI5X1315 |
| Feeding Conveyor Belt | / | B1000*7m | B1000*7m | B1200*8m | ||
| Discharge Conveyor Belt | B1200*8.4m | B1200*8.4m | B1000*8.4m | B1000*8.4m | / | |
| Max Feed Size (mm) | 700 | 900 | 300 | |||
| Processing Capacity (t/h) | 200-330 | 300-500 | 150-300 | 150-300 | 150-250 | 180-300 |
| Transportation Size(mm) | / | 16605*3500*7100 | 16439*3800*7120 | |||
Each crushing and screening module rests on its own independent frame with a skid-type structure that maximizes ground contact, effectively distributing force evenly and eliminating point-contact stress. Once you level the chassis, you can start production immediately.
MAM MK series modular crusher uses an integrated modular design that mounts the crusher and belt conveyor onto a single unified chassis. This lets rise and transport the entire unit as one piece, enabling assembly and full production startup within 12 to 48 hours.
The framework design and built-in maintenance platform give technicians full space to carry out on-site checks and maintenance work with ease.
The unit hoists and transports as a single piece, cutting down significantly on disassembly and reinstallation time.
Unlike the spread-out layout of stationary production lines, MAM MK series semi-mobile crusher everything into a compact, highly integrated footprint, saving customers significant space and capital investment. Operators can also change out main machines or combine different modules to adapt to changing on-site conditions, material types, or market needs, and to upgrade existing production lines.
The MK series semi-mobile crusher station (skid-mounted) uses electrical components from leading brands. The main machine starts via soft start, while auxiliary equipment uses direct start. A single button starts or stops each separate module. Operators can also choose for Siemens control systems with visual touch screens for a more intuitive, intelligent control experience.
