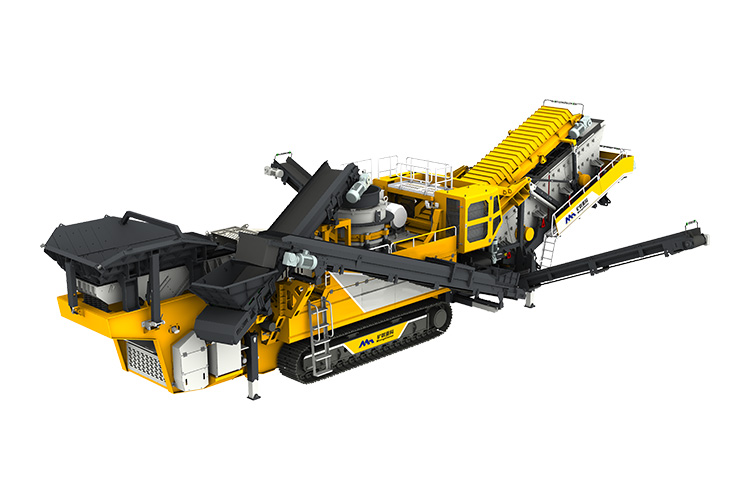

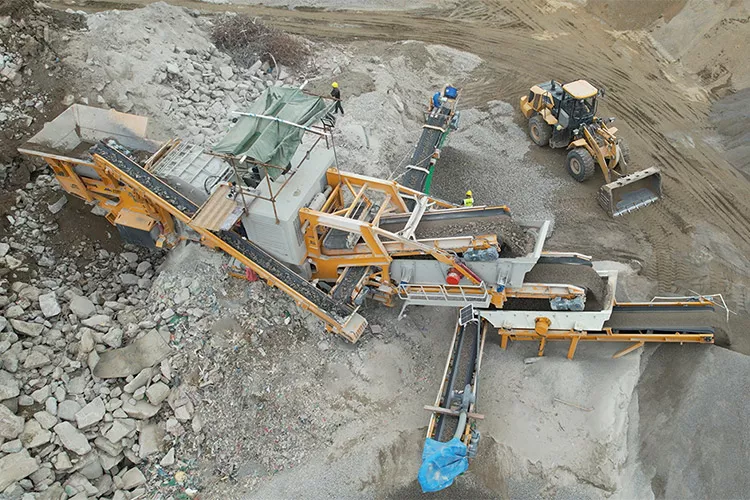

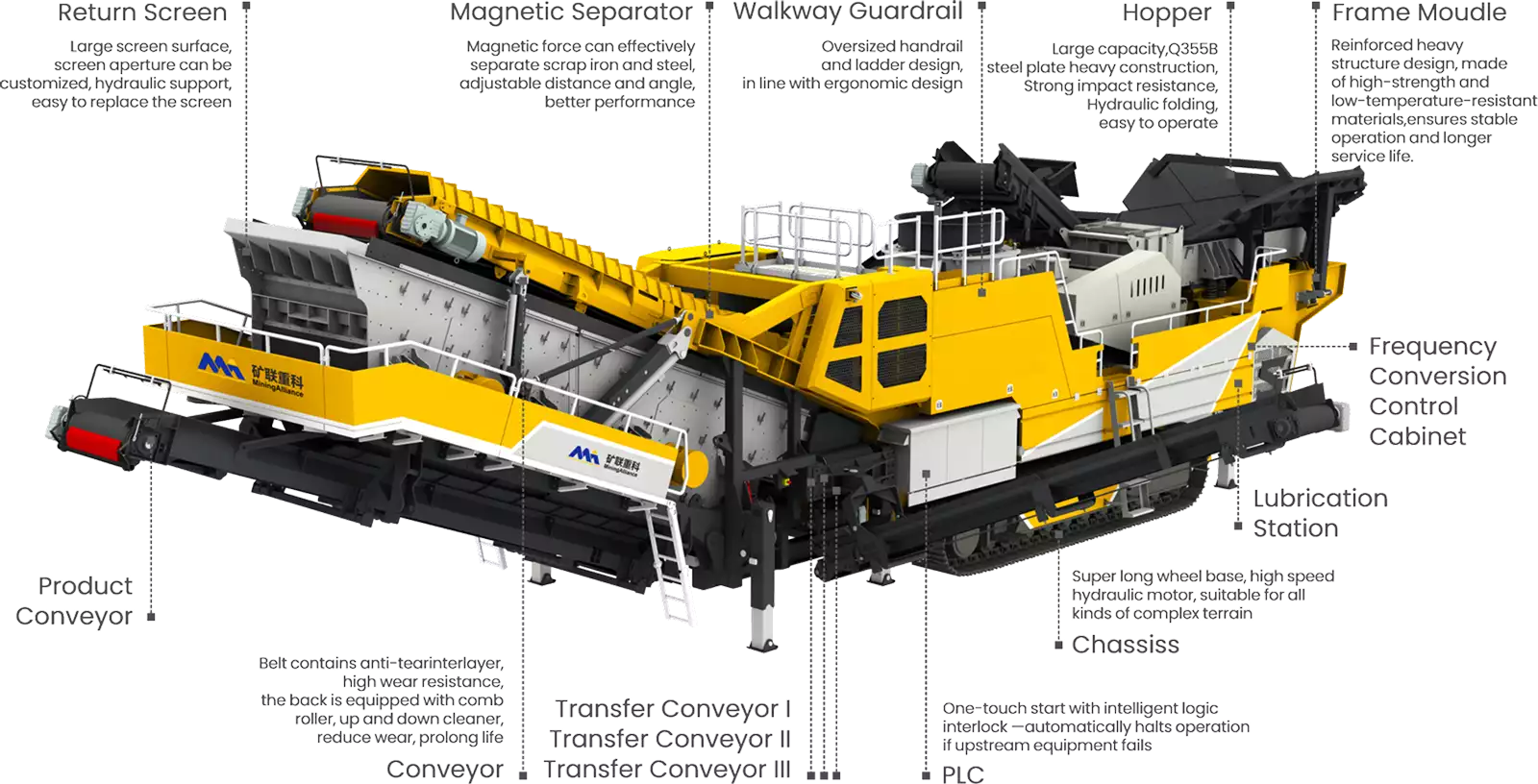

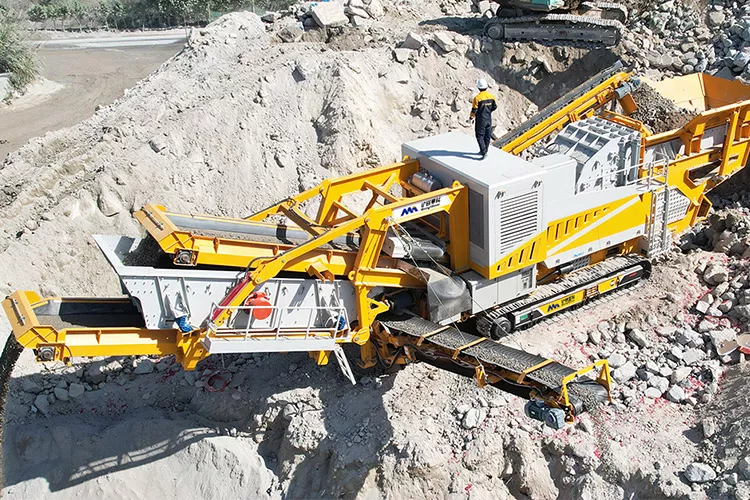

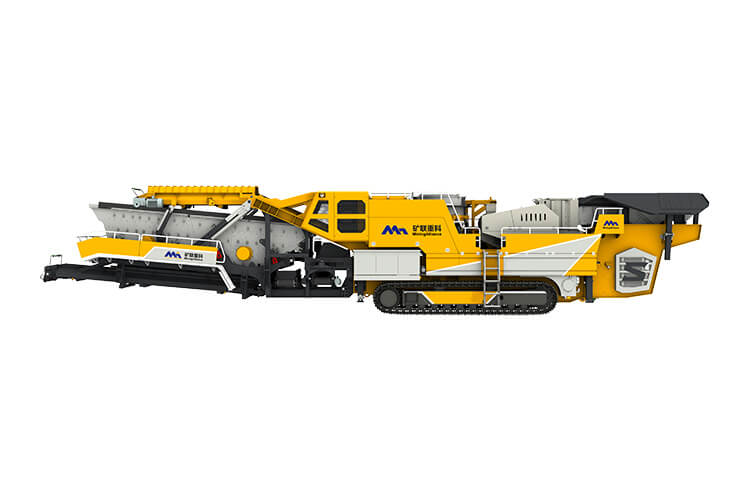

MAM TX Series Tracked Mobile Crushing and Screening Plant integrates vibrating feeder, jaw crusher, multi-cylinder hydraulic cone crusher, and three-layer dual-stage screen. It achieves the crushing and screening functions of a modular hard rock crushing production plant. This design effectively reduces equipment costs, supplies higher capacity, and features a compact footprint.
| Model | / | TX4 |
|---|---|---|
| FEEDER | Feeding Height(mm) | 4100 |
| Feeder Width*Length(mm) | 1100*3737 | |
| Power(kW) | 2*3.7kw | |
| RETURN SCREEN | Layer Number Of Mesh | 3 |
| Vibrating Screen Width*Length(mm) | 2000*2500 / 2000*3500 | |
| Power(kW) | 4*6kw | |
| CONVEYOR | Main Conveyor Width*Length(mm) | 1200*15500 |
| Finished Material Side Conveyor Width*Length(mm) | 500*6125 | |
| Under Screen Conveyor Width*Length(mm) | 1200*7570 | |
| Return Conveyor1 Width*Length(mm) | 1000*9760 | |
| Return Conveyor2 Width*Length(mm) | 1000*6260 | |
| PARAMETERS | Total Power(kW) | 452 |
| Processing Capacity(t/h) | 200~400 | |
| Speed(km/h) | 0.6-1 | |
| Total Weight(t) | 115 | |
| Transportation Size(mm) | 20700*5100*4000 |
Modular welded-frame design increases strength by 30% with enhanced reliability.
High-Efficiency Crushing ChamberSymmetrical V-shaped cavity large toggle angle. 15% larger feed size, 20% higher throughput, 25% reduced wear.

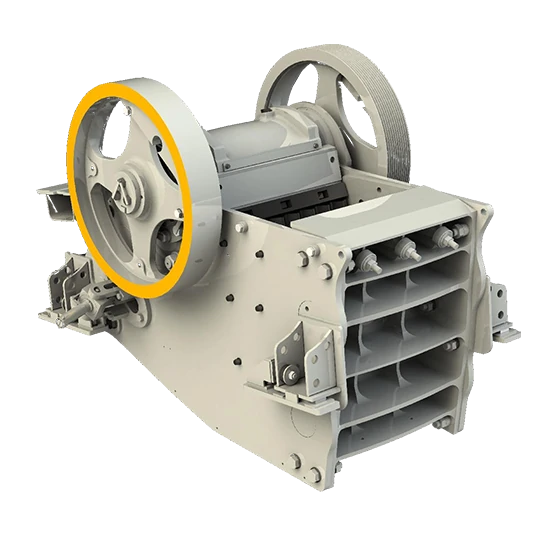

Heavy-Duty Movable Jaw AssemblyForged eccentric shaft + optimized FEM-designed jaw body. Labyrinth seals + centralized lubrication extend bearing life by 50%.
Intelligent Protection SystemAdjustable integrated motor base (30% longer belt life).
Special rubber damping system (40% vibration reduction).
Reversible jaw plates (100% utilization rate).

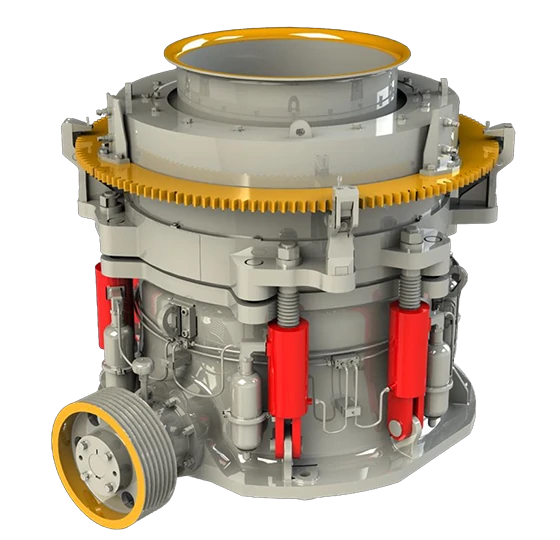

High-class valve blocks + high-flow circuits for faster response and enhanced stability.
Integrated discharge adjustment/tramp release/auto-clearing functions reduce maintenance time by 40%.
Temperature Controlled LubricationReal-time monitoring of oil pressure/flow/temperature with auto heating/cooling.
Splash lubrication + multi-point protection for dual bearing safeguards.
Safety ProtectionInstant overload release with auto-reset function.
Optimized Crushing ChamberInter-particle crushing for superior product shape. 35% higher wear parts utilization with 50% less replacement loss.
Robust ConstructionOne-piece cast frame with box-section boom design for maximum strength.
Multi-stage sealing system (U-T seals + spherical floating seals) ensures lubricant purity.
Smart Hydraulic ControlAuto-pressure regulation for locking/relief cylinders.
Two independently vibrating decks with isolated exciters for higher total power output. 20% greater amplitude and screening efficiency, optimized cantilever design extends service life.
Extra-Large Screening Area12m² (6m×2m) effective screening surface with superior single-pass efficiency.
Heavy-Duty ConstructionReinforced frame structure withstands harsh operating conditions with anti-deformation/fatigue properties.
High-Power Dual Vibrating SystemTwo sets of vibrators (24kW total), 500t/h max capacity. Adjustable vibration force with ±8mm amplitude range.
The inner surface adopts standardized NM400 wear-resistant material, which is durable and easy to replace.
High-Standard Precision ProcessingThe vibration motor connection seat adopts high standards of precision machining, the connection fitting surface is more delicate, and the force is more uniform.
Dual-Vibration Motor DriveAdjustable excitation force for precise feed rate control.
High-Strength Bolts & Double Nut ConnectionThe reinforced and thickened mounting base is secured with 6 sets of Grade 12.9 high-strength bolts and double nuts, further enhanced with imported Loctite thread-locking adhesive to prevent long-term deformation.
Optimized Vibration TransmissionCentroid-aligned force direction ensures smooth, uniform feeding.
Nm400 Wear-Resistant PlateStandardized NM400 wear-resistant plate for extended service and easy replacement.
