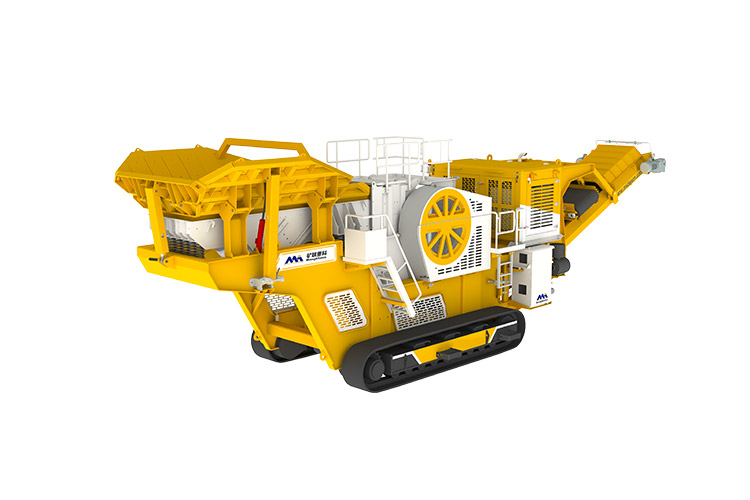

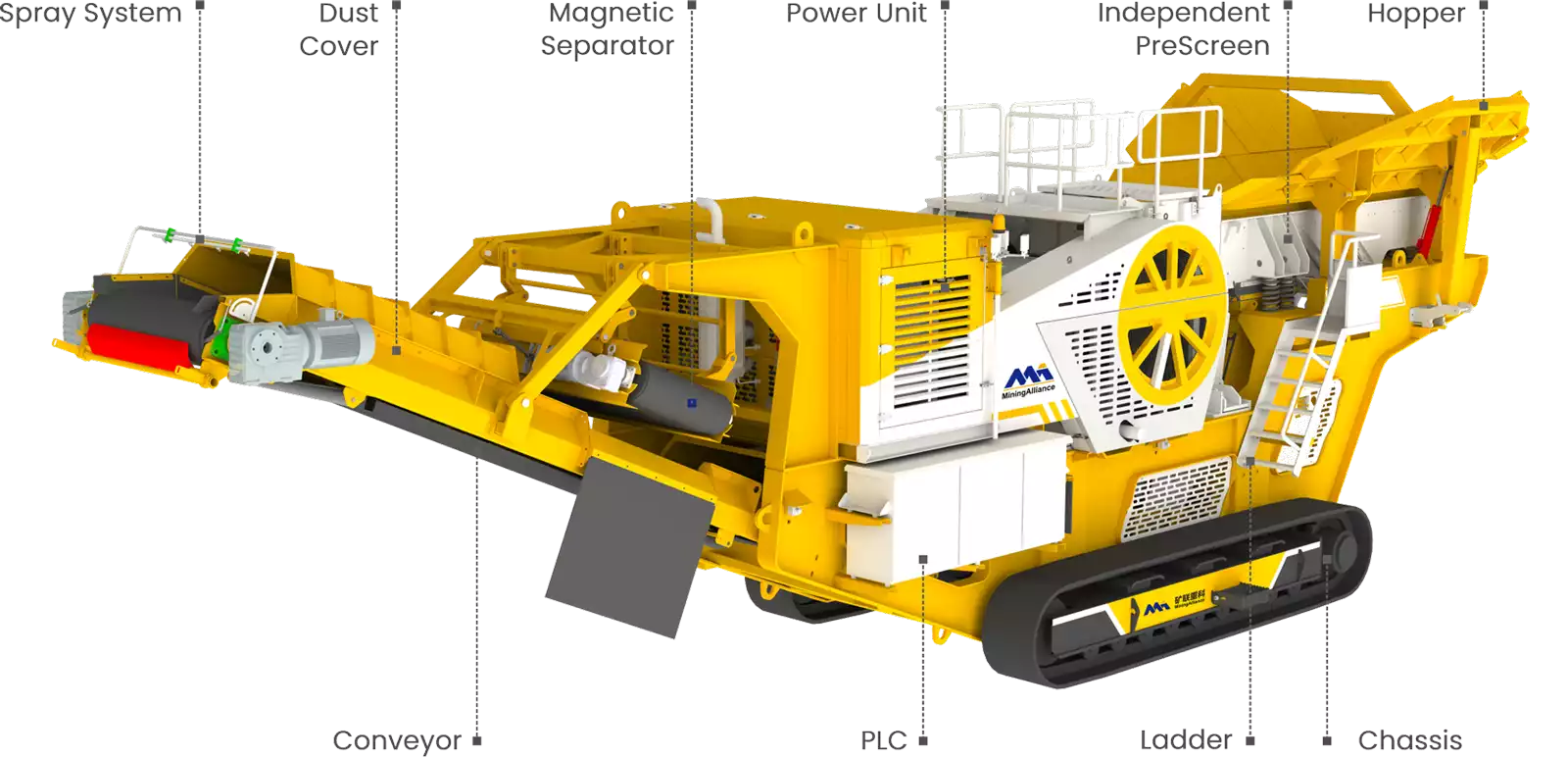

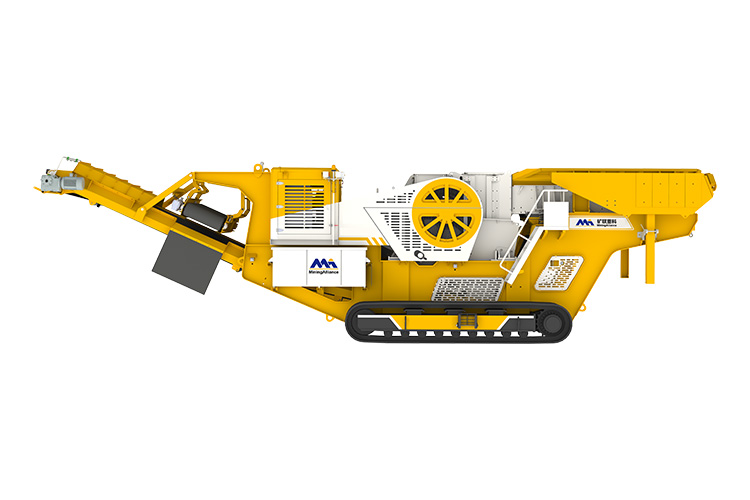

The MAM TKJ Series Tracked Mobile Jaw Crusher, equipped with a European C-series jaw crusher, features a large foldable bin, an independent pre-screening system, iron removal and spray devices. It supports high feeding particle size and wide discharge range, delivers high crushing efficiency, and offers excellent mobility for various rock types.
| Model | / | TKJ-150 | TKJ-260 | TKJ-350E | TKJ-350 | TKJ-350S | TKJ-550 |
|---|---|---|---|---|---|---|---|
| FEEDER | Volume(m³) | 4 | 6 | 9 | |||
| Feeding Height(mm) | 4200 | 4350 | 4500 | ||||
| Max Feed(mm) | 460 | 560 | 630 | 700 | |||
| Processing Capacity(t/h) | 250 | 450 | 650 | ||||
| CRUSHER | Type | C93 | C106 | C113 | C120 | ||
| Feed Size(mm) | 930*580 | 1060*700 | 1130*750 | 1200*870 | |||
| Discharge Range(mm) | 40-175 | 70-200 | 70-275 | ||||
| CONVEYOR | Main Conveyor Width(mm) | 1000 | 1200 | 1400 | |||
| Stacking Height(mm) | 3200 | 3307 | 3200 | 3200 | |||
| Side Conveyor (W*H mm) | 650*2196 | / | 650*2196 | ||||
| Driving | Motor reduce drive | ||||||
| PARAMETERS | Total Power(kW) | 106.3 | 149.8 | 138.4 | 197.8 | ||
| Host Power(kW) | 75 | 110 | 160 | ||||
| Processing Capacity(t/h) | 80-335 | 150-500 | 160-570 | 175-600 | |||
| Speed(km/h) | 0.6-1 | ||||||
| Total Weight(t) | 40 | 48 | 55.5 | 52 | 44 | 60 | |
| Transportation Size(mm) | 12450*3000*3500 | 16354*3384*3725 | 13636*3160*3634 | 17600*3100*3800 | |||

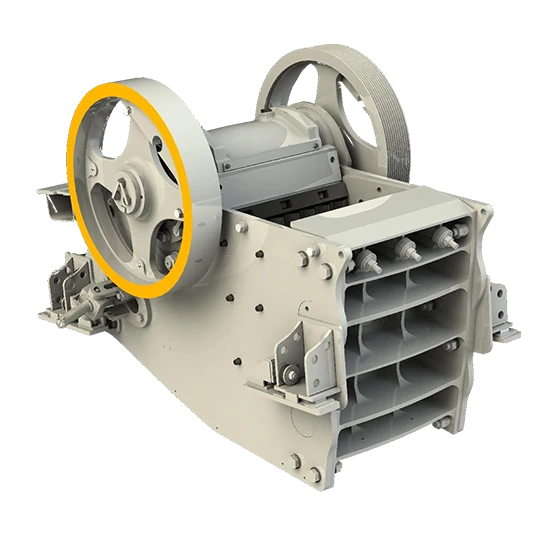

The world's most advanced European version of the C series jaw crusher is adopted, with a solid structure: modular, non-welded frame design, greater strength and high reliability.
Efficient Cavity DesignSymmetrical "V" cavity design, large toggle plate inclination, large stroke, and reasonable speed make the feed particle size larger, the output higher, the particle size more uniform, and the jaw plate wear reduced.
Heavy Duty Movable Jaw AssemblyThe forged heavy eccentric shaft, high-quality heavy-load rolling bearings, and the movable jaw optimized by finite element software ensure the high impact resistance and stability of the movable head assembly.
The labyrinth seal and centralized lubrication system ensure that the bearing grease is not contaminated, and the operation time is longer and more stable.
Movable Jaw Guard PlateA heavy guard plate is installed above the movable jaw to prevent strong impact of materials and effectively protect the movable jaw body and its internal bearings from damage.
Integrated Bearing SeatThe integral cast steel bearing seat structure ensures complete coordination with the frame, preventing the combined bearing seat from generating unnecessary radial loads on the bearing during the tightening process, making the bearing run more smoothly.
Integrated Motor DeviceThe integrated installation mode of the motor seat and the crusher frame not only saves the installation space of the jaw crusher and reduces the length of the V-belt, but also completes the adjustment of the V-belt tension due to the synchronous movement of the frame, motor seat, and motor, and the adjustable motor seat, thereby extending the service life of the V-belt.
Shock-absorbing Device DesignThe crusher adopts a special rubber shock-absorbing installation and fixation, which effectively absorbs the vibration peak of the equipment and allows the vertical and longitudinal displacement of the crusher, thereby reducing the impact on the frame.

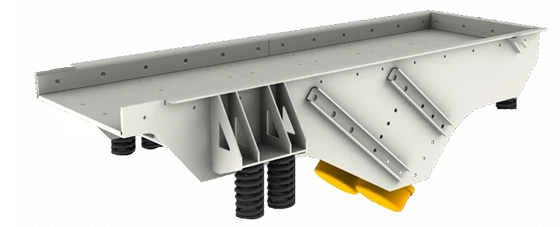

The feed port of the tracked jaw crusher is equipped with an ultrasonic sensor of German imported brand, which monitors the material level of the main machine in real time.
Controls the feeding system to continuously feed intelligently according to the material level, and prevents overload and blockage.
The pre-screener and feeder are equipped with separate frequency converters. When the material level in the crushing chamber reaches the warning height, the sensor sends a signal to reduce the voltage frequency of the feeder and pre-screening and reduce feeding.
When the material in the crushing chamber drops below the warning height, the sensor sends a signal to restore the voltage frequency of the feeder and pre-screening to normal feeding. Effectively avoid overload and blockage, and the trouble of cleaning materials.

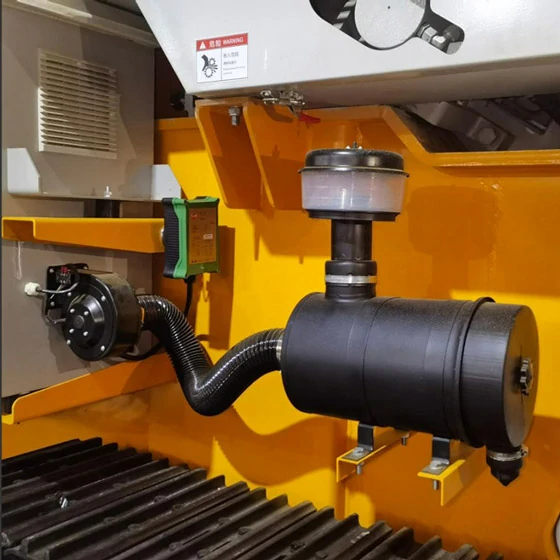

The frequency converter cabinet is equipped with a positive pressure dust-proof system, which effectively reduces dust inside the electrical cabinet, improves cooling efficiency, and significantly extends the service life of the electrical system.
