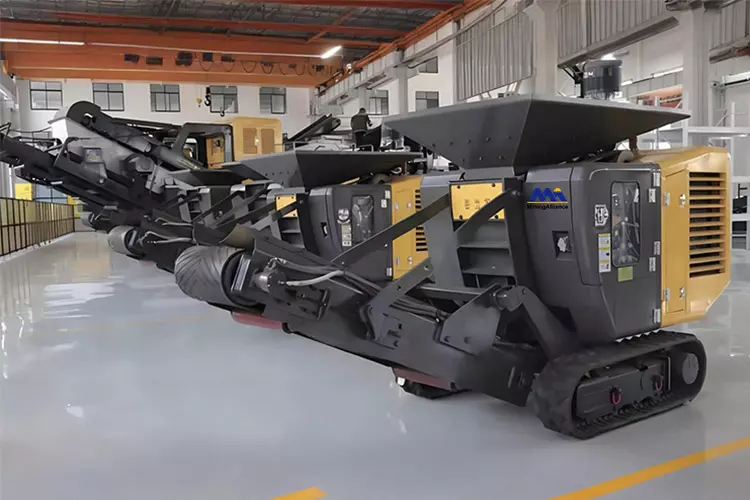

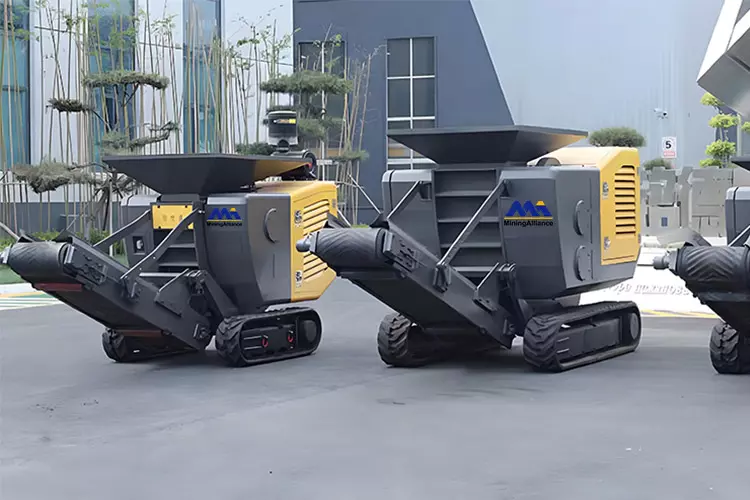

The OP35 mini tracked mobile crusher offers efficient on-site processing of both natural stone and construction & demolition materials. It is especially suited for small-scale aggregate production, providing a flexible solution for builders, landscape gardening, infrastructure works, relief efforts, and recycling applications. With its compact design and reliable performance, it ensures smooth operation in projects that require limited crushed stone output, while also contributing to sustainable material reuse.
| Model | Value |
|---|---|
| Overall Dimensions | 3800*1500*1933 mm |
| Weight | 4.2 T |
| Capacity | 10-60 t/h |
| Feed Opening Size | 320*500 mm |
| Hopper Size | 1.1 m³ |
| Feed Height | 1933 mm |
| Discharge Height | 1100 mm |
| Max Feed Size | 250 mm |
| Discharge Size | 0-70 mm |
| Belt Type | Rubber 250*1521 mm |
| Power | Yanmar 25 hp |
| Fuel Consumption | 8L-12L |
