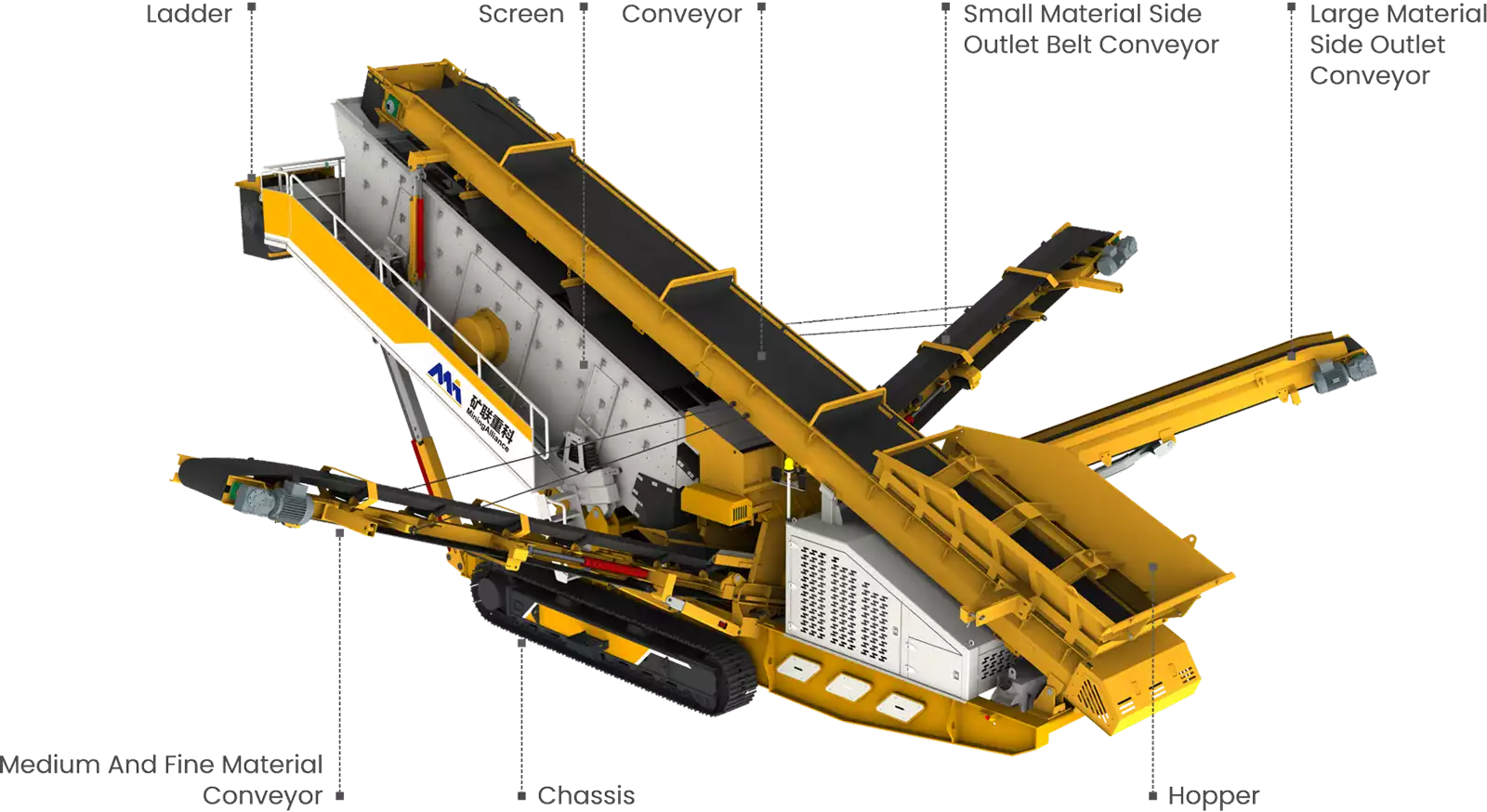

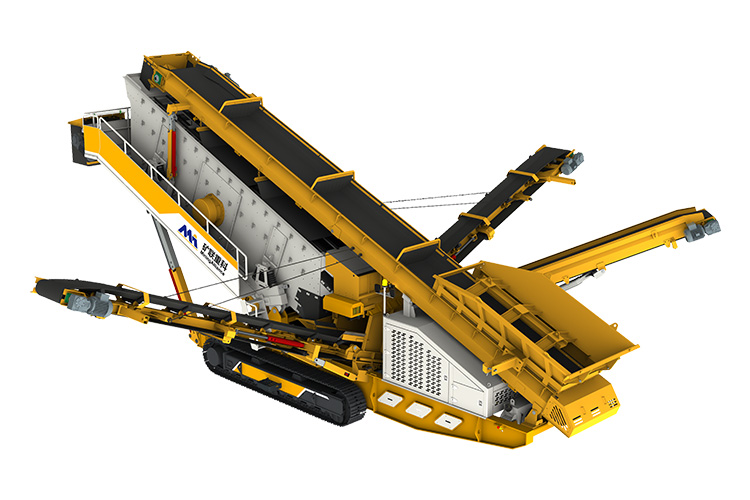

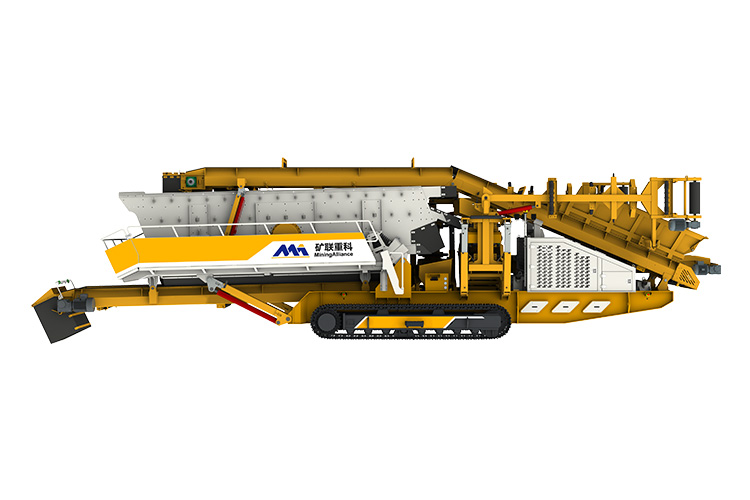

The MAM TKS Series Tracked Mobile Screening Plant features an onboard fully automatic folding conveyor, ensuring high throughput and precise screening of a wide range of materials. It is especially suitable for the fine grading of sand, gravel, and recycled construction waste after crushing. With its flexible transfer capability, robust construction, and high reliability, the TKS Series is an ideal solution for efficient and dependable material processing.
| Model | / | TKDS-3618 | TKS-5618 | TKS-3618E | TKS-3618 |
|---|---|---|---|---|---|
| FEEDER | Volume(m³) | 2.8 | |||
| Feeding Height(mm) | 1979 | 2252 | |||
| Max Feed(mm) | 200 | ||||
| Processing Capacity(t/h) | 350 | 400 | 350 | 350 | |
| SCREENING | Layer Number Of Mesh | 3 | 4 | 3 | 3 |
| Vibrating Screen W*L(mm) | 6000*1800 | ||||
| CONVEYOR | Main Conveyor Width(mm) | 1000 | |||
| Width Of Belt(mm) | 650 | 500 | |||
| Under Screen Conveyor Width x Stacking Height(mm) | 1200*4399 | 1000*4280 | 1000*3422 | 1000*3422 | |
| Side 1 Belt Machine WidthxStacking Height(mm) | 500*3650 | 500*3500 | 500*3570 | 500*3570 | |
| Side2 Belt Machine WidthxStacking Height(mm) | 650*3755 | 650*3500 | 650*3697 | 650*3697 | |
| Side 3 Belt Machine WidthxStacking Height(mm) | 650*3603 | 650*3500 | 650*3560 | 650*3560 | |
| Side 4 Belt Machine Widthx Stacking Height(mm) | / | 650*3500 | / | / | |
| PARAMETERS | Total Power(kW) | 74.5 | 108 | 64.5 | 64.5 |
| Processing Capacity(t/h) | 200-500 | ||||
| Speed(km/h) | 0.6-1 | ||||
| Total Weight(t) | 38 | 45 | 36 | 34 | |
| Transportation Size(mm) | 16468*3366*3776 | 18440*3050*4060 | 14808*3539*3799 | 14808*3539*3799 | |

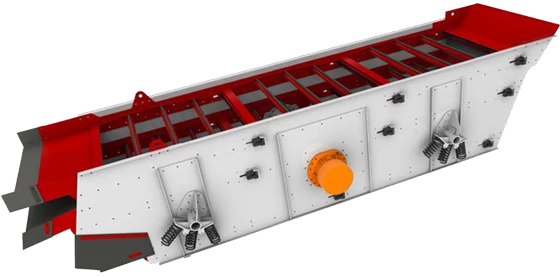

MAM screener is made with high-strength steel and carefully designed structure and strength to resist warping and wear from constant use, even in tough conditions. The thicker screen design makes them more durable and long-lasting.
Brand Exciter DriverThe vibrating screen is powered by a renowned-brand exciter, delivering greater vibration force, superior reliability, and extended service life. With ample power reserves, the exciter allows adjustable vibration intensity to adapt to diverse working conditions.
Fully enclosed belt edges: Sealed side guards prevent material spillage.
Polyurethane impact bed: Absorbs shock at loading points, extending belt life.
Heavy-duty frame: Multi-folded steel plate design for high bending resistance.
Easy tension adjustment: Accessible tensioning system for quick maintenance.
Heavy-duty drive pulley: Diamond-pattern lagging for superior grip and anti-slip performance.
Taper-lock shaft connection: Replace welding, preventing shaft breakage.
Self-cleaning tail pulley: Prevents material buildup between belt and pulley.
Hydraulic maintenance feature: Adjustable tail section for easier cleaning and servicing.
Replaceable wear liners: Reinforced buffer plates at discharge for abrasion resistance.
Centralized lubrication: External grease tube for convenient bearing maintenance.
High power reserve: Robust design for heavy-duty, high-capacity conveying.
Wide belt (1.2m): Ensures smooth material flow and higher capacity.
Dust-proof enclosure: Large sealed cover minimizes dust emissions.
Optimized clearance: Prevents material accumulation near the crusher.
