MAM MK series modular jaw crusher is developed based on NK mobile crusher, it features mobility and high capacity. It has large feed size and wide discharge range, and is suitable for various stones with medium and high hardness. It is easy to transfer and has high crushing efficiency.
| Model | MK75J | MK90J | MK110J | MK125J |
|---|---|---|---|---|
| Vibrating Feeder | FK0936 | FK1142 | FK1142 | FK1345 |
| Crushing Equipment | PE750*1060 | PE900*1200 | C6X110 | C6X125 |
| Car Frame | 9000mm | |||
| Hopper Volume (m³) | 6 | 9 | ||
| Main Conveyor | B1000*9m | B1200*9m | B1200*10m | B1200*10m |
| Side Conveyor | B500*3m | B650*3m | ||
| Iron-remover | RCYD(C)-8 | RCYD(C)-10 | ||
| Max Feed Size (mm) | 630 | 750 | 760 | 850 |
| Processing Capacity (t/h) | 120-280 | 150-320 | 160-420 | 240-600 |
| Total Weight (Ton) | 40 | 70 | 47 | 49 |
| Transportation Size(mm) | 13189*3852*4396 | 14488*5780*5200 | 13638*4160*4930 | 15400*4160*6300 |

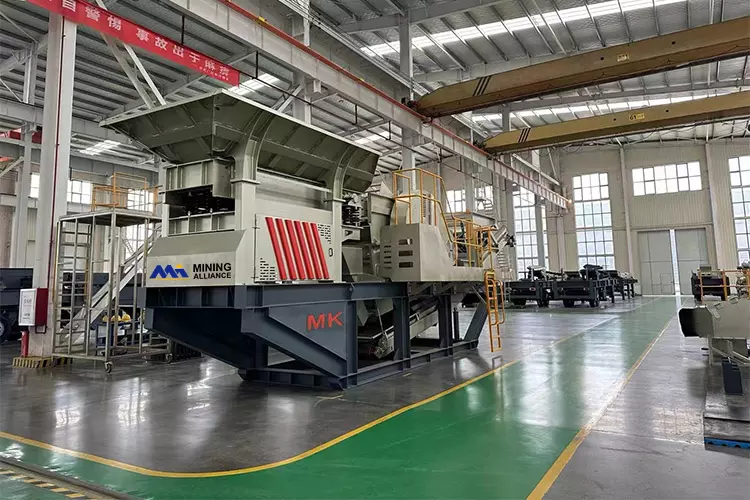

Each crushing and screening module rests on its own independent frame with a skid-type structure that maximizes ground contact, effectively distributing force evenly and eliminating point-contact stress. Once you level the chassis, you can start production immediately.

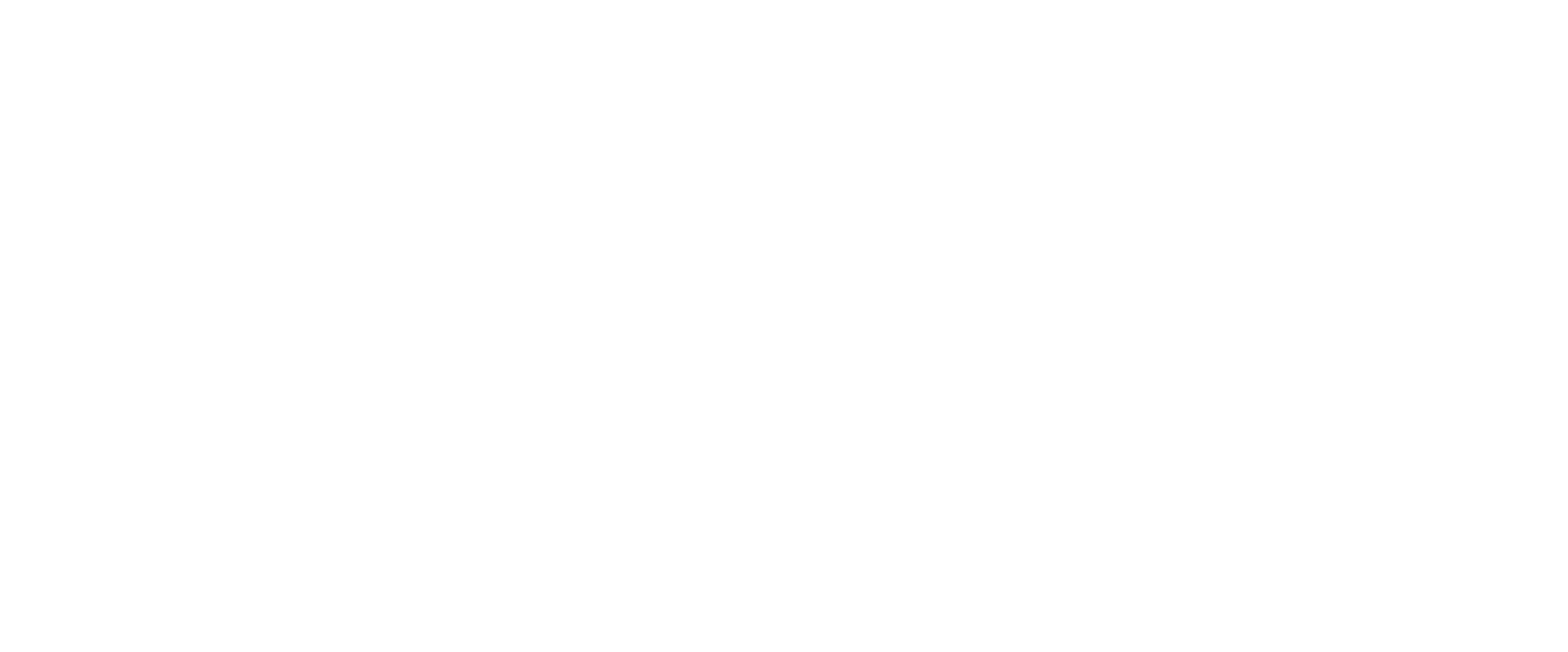

MAM MK series modular crusher uses an integrated modular design that mounts the crusher and belt conveyor onto a single unified chassis. This lets rise and transport the entire unit as one piece, enabling assembly and full production startup within 12 to 48 hours.
The framework design and built-in maintenance platform give technicians full space to carry out on-site checks and maintenance work with ease.
The unit hoists and transports as a single piece, cutting down significantly on disassembly and reinstallation time.

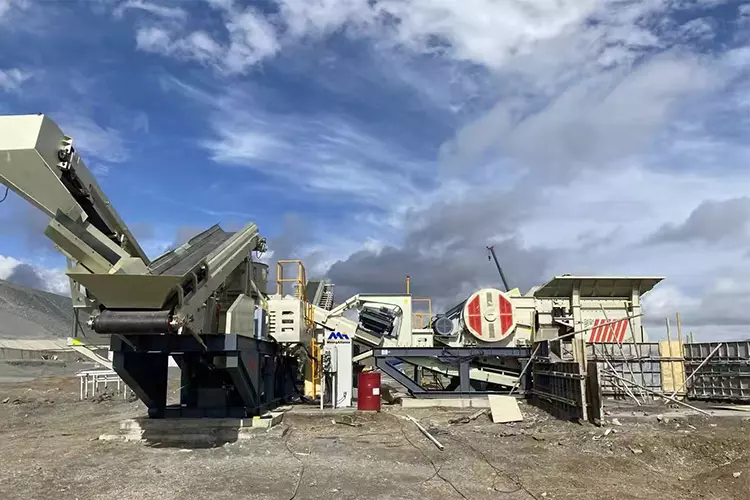

Unlike the spread-out layout of stationary production lines, MAM MK series semi-mobile crusher everything into a compact, highly integrated footprint, saving customers significant space and capital investment. Operators can also change out main machines or combine different modules to adapt to changing on-site conditions, material types, or market needs, and to upgrade existing production lines.
The MK series semi-mobile crusher station (skid-mounted) uses electrical components from leading brands. The main machine starts via soft start, while auxiliary equipment uses direct start. A single button starts or stops each separate module. Operators can also choose for Siemens control systems with visual touch screens for a more intuitive, intelligent control experience.
