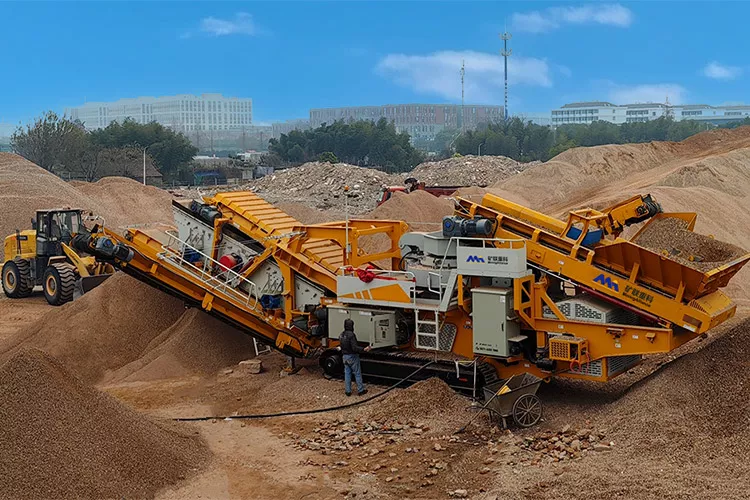

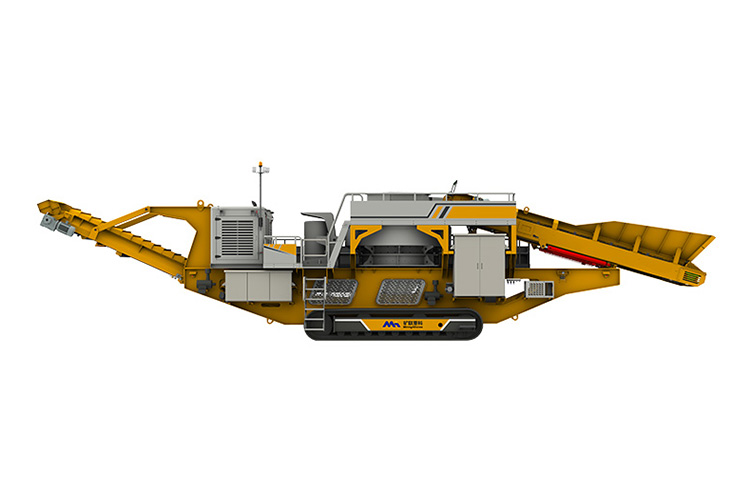

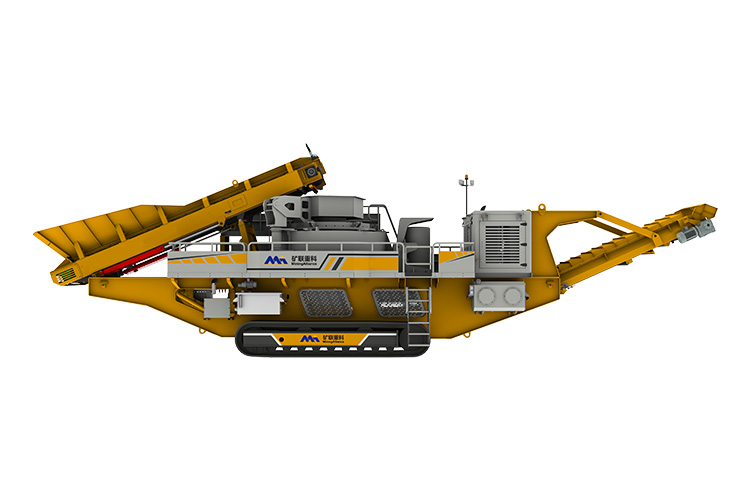

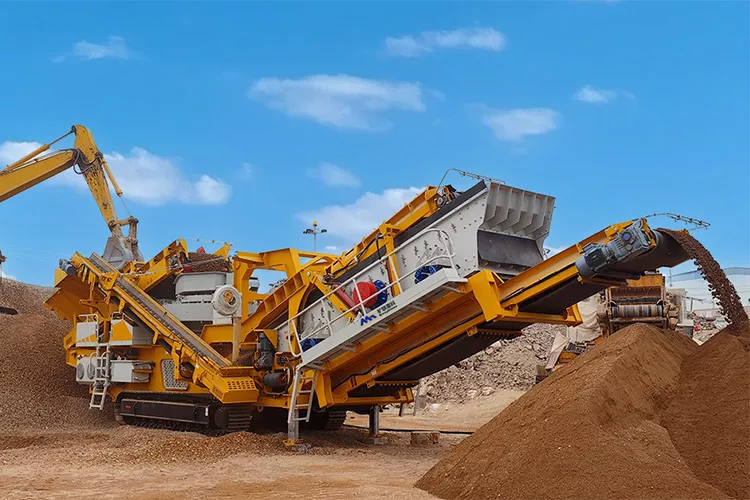

The MAM TKV-S Series Tracked Mobile Sand Making Machine features a newly designed impeller and a special sealing structure, ensuring low energy consumption and extended service life. It offers three drive options: external electric power, hybrid (oil-electric), and fully hydraulic. It is suitable for sand shaping or further sand making after secondary crushing, with excellent mobility, high processing capacity, and superior particle shape.
| Model | / | TKV-S | TKV-SE |
|---|---|---|---|
| FEEDER | Volume(m³) | 5 | |
| Feeding Height(mm) | 2700 | ||
| Max Feed(mm) | 100 | ||
| Processing Capacity(t/h) | 500 | ||
| CRUSHER | Diameter Of Rotor(mm) | 1222 | |
| Thickness Of Rotor(mm) | 220 | ||
| Host Power(kW) | 400 | ||
| CONVEYOR | Main Conveyor Width(mm) | 1200 | |
| Finished Conveyor Stacking Height(mm) | 1200 | ||
| PARAMETERS | Total Power(kW) | 434 | |
| Processing Capacity(t/h) | 100-500 | ||
| Speed(km/h) | 0.6-1 | ||
| Total Weight(t) | 45 | ||
| Transportation Size(mm) | 17588*3545*3868 | ||
Featuring combined oil lubrication and air-cooling system to enhance reliability and maximize sand making machine performance.
Dual-Cavity Feed Opening DesignAchieves 100% larger feed dimensions than standard models, enabling 100mm feed size (vs. typical 40mm in conventional VSI crushers) and breaking through Barmac-series feed limitations.

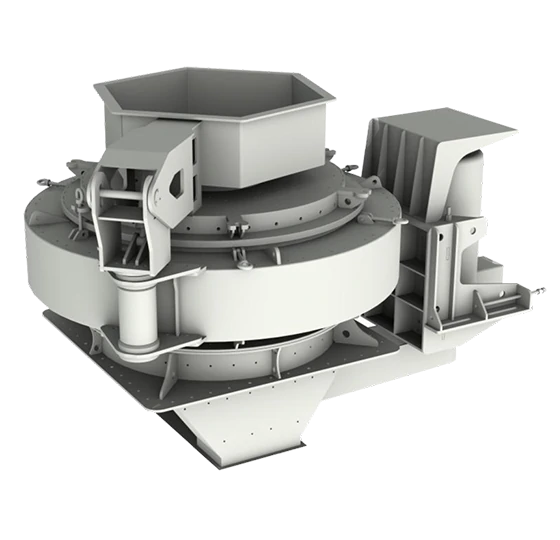

Specially Designed Alloy BladesThe wear on rotor consumable parts is reduced by more than 50%. The core part of the rotor is protected by specially designed alloy blades and protective blocks.
The entire machine is equipped with a vibration switch and high-strength rubber shock-absorbing devices to ensure that the rotor body is not worn or cracked.
The rotor is made of a specially alloyed material, reinforced with additional thickness, which extends the overall production efficiency and service life of the sand making machine by more than 100%.
Dual-Cavity Discharge Opening DesignThe dual-cavity discharge opening design features a large discharge opening, with the available discharge angle reaching up to 89%. This reduces material processing time within the cavity, enabling a blockage-free production process.
With a powerful 18.5 KW drive, the feeding belt can withstand direct loading from wheel loaders without stalling, significantly improving feed stability to the cone crusher.
Independent Lifting Cylinder DriveThe feeder features independently operated hydraulic cylinders for vertical and horizontal extension, enabling seamless switching between transport, pre-screening, and non-pre-screening modes.
Safety limiters ensure operational stability, while integrated hydraulic balance valves provide smooth, reliable motion and prevent stalling during transitions.
Enhanced Belt Protection SystemThe high-density roller and polyethylene support system absorbs feeding impacts, protects conveyor belts, and extends component life through optimized load distribution.
Independent Side WindowEach access window opens separately, enabling timely inspection and maintenance of the inner belt edges with ease.

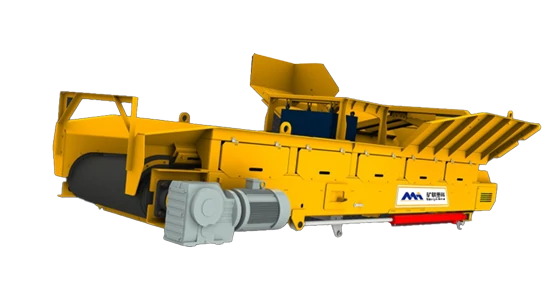

Feeding Belt ConveyorDesigned with an extra-wide 1.2m belt feeder.

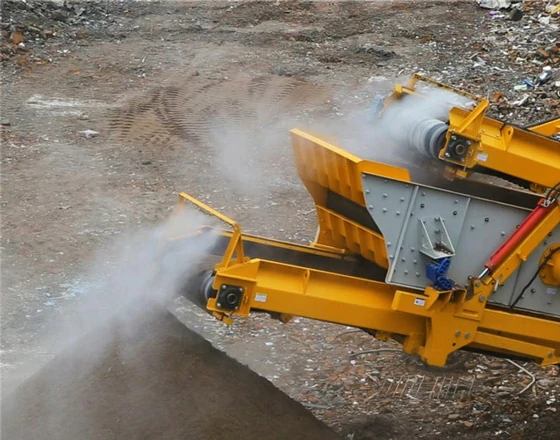

The whole machine is equipped with an integrated spray system, including filters, water pumps, branch valves, and nozzles.
The spray system can be started and stopped individually according to the situation. They are located at the feed port, discharge port, and main belt conveyor head of the jaw crusher.
