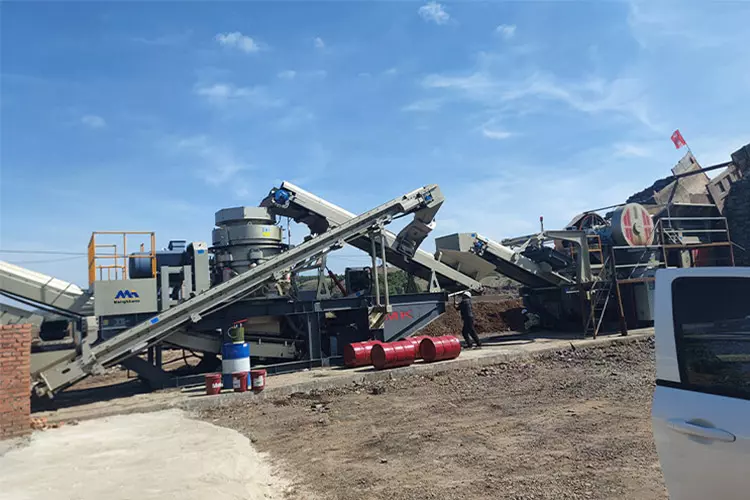

MAM MK series semi-mobile modular cone crusher uses hydraulic cone crusher as main machine, adopts the lamination crushing principle. The finished product has good particle shape and large output. Fine crushing stages of high hardness materials under various working conditions, such as metal and non-metal ores, construction waste, construction aggregate production, highways/railways, road and bridge construction, etc.
| Model | MK160H | MK300H | MK300HS | MK500H | MK250H | MK160H-2M | MK300H-2M | MK250H-2M |
|---|---|---|---|---|---|---|---|---|
| Vibrating Feeder | / | / | SKX1536 | / | / | 3SKX1560 | 3SKX1860 | 3SKX2160 |
| Crushing Equipment | HST160S | HPT300 | HPT300 | HPT500 | HST250S | HST160H | HPT300 | HST250H |
| Feeding Conveyor Belt | B1000*7m | B1200*10m | B1200*10m | B1000*8m | B1200*8m | B1200*8m | ||
| Discharge Conveyor Belt | B1000*8.4m | B1200*10.8m | B1200*10.8m | / | ||||
| Max Feed Size (mm) | 300 | 220 | 220 | 300 | 350 | 180 | 220 | 215 |
| Processing Capacity (t/h) | A+(30~70) | 200-450 | A+(30~70) | |||||
| Transportation Size(mm) | / | 15020*3290*4980 | 17650*3420*4916 | / | / | 15562*3300*7114 | 15562*3500*7114 | 16100*3800*7114 |
Each crushing and screening module rests on its own independent frame with a skid-type structure that maximizes ground contact, effectively distributing force evenly and eliminating point-contact stress. Once you level the chassis, you can start production immediately.

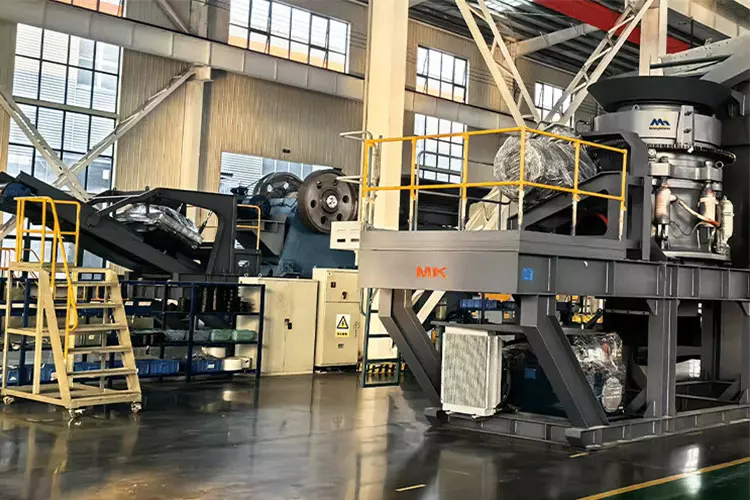

MAM MK series modular crusher uses an integrated modular design that mounts the crusher and belt conveyor onto a single unified chassis. This lets rise and transport the entire unit as one piece, enabling assembly and full production startup within 12 to 48 hours.
The framework design and built-in maintenance platform give technicians full space to carry out on-site checks and maintenance work with ease.
The unit hoists and transports as a single piece, cutting down significantly on disassembly and reinstallation time.
Unlike the spread-out layout of stationary production lines, MAM MK series semi-mobile crusher everything into a compact, highly integrated footprint, saving customers significant space and capital investment. Operators can also change out main machines or combine different modules to adapt to changing on-site conditions, material types, or market needs, and to upgrade existing production lines.
The MK series semi-mobile crusher station (skid-mounted) uses electrical components from leading brands. The main machine starts via soft start, while auxiliary equipment uses direct start. A single button starts or stops each separate module. Operators can also choose for Siemens control systems with visual touch screens for a more intuitive, intelligent control experience.
