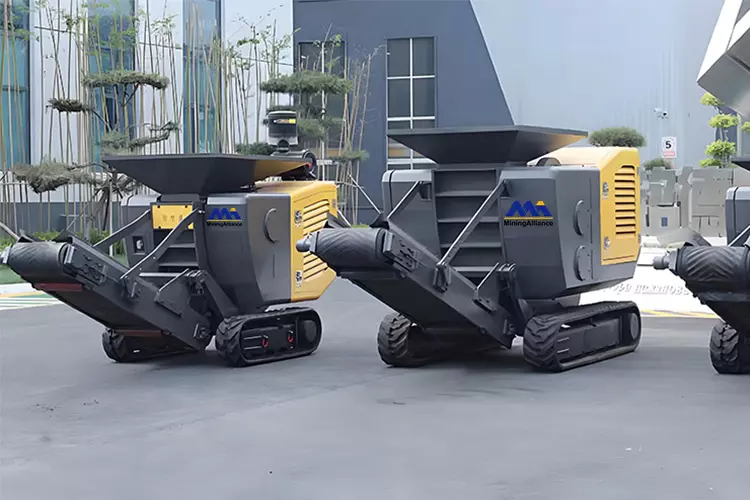

The OP50 mini tracked mobile crusher is simple, robust, and efficient, whilst reducing environmental impact and saving you money. It adopts a "V" symmetrical crushing cavity design, the crushing cavity is deep, the bite angle is small, the stroke is large. The stable rotation speed increases the throughput and material crushing frequency, greatly increasing the output. The size of the discharge opening can be set by adjusting the backing plate, which is safe, reliable, and convenient. Only trusted global brands for motors and controls -built to last.
| Model | Value |
|---|---|
| Overall Dimensions | 4334*1690*2172 mm |
| Weight | 5 T |
| Capacity | 20-80 t/h |
| Feed Opening Size | 400*600 mm |
| Hopper Size | 1.5 m³ |
| Feed Height | 2172 mm |
| Discharge Height | 1250 mm |
| Max Feed Size | 300 mm |
| Discharge Size | 0-70 mm |
| Belt Type | Rubber 300*2299 mm |
| Power | Yanmar 37 hp |
| Fuel Consumption | 10-15L |
