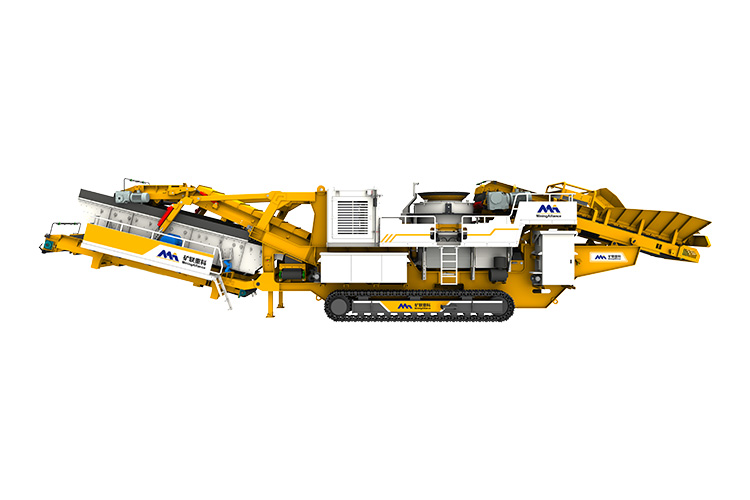

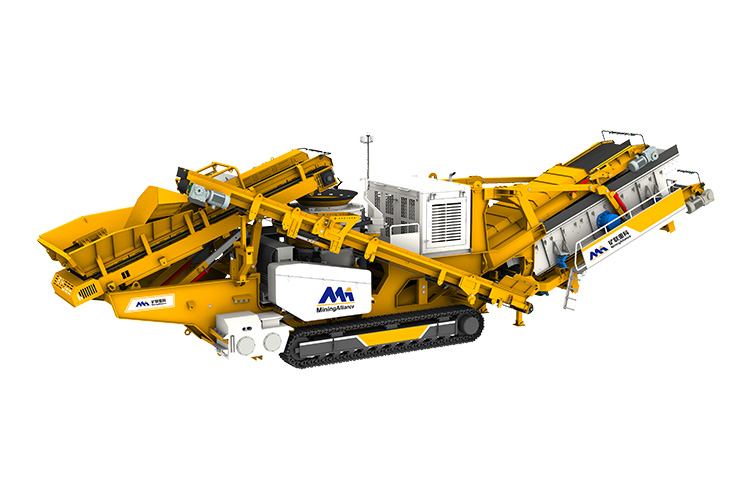

The MAM TKC Series Tracked Mobile Cone Crusher is equipped a multi-cylinder cone crusher, adopts lamination crushing technology. And quipped with a high-torque, low-speed feeder to ensure a consistent material flow. It is mainly used for secondary crushing, is ideal for medium to high hardness rocks. With its compact structure, ease of transfer, large crushing capacity, low wear, and exceptional reliability, it offers an efficient and durable solution for demanding crushing applications.
| Model | / | TKH-300S | TKH-300SR | TKH-300H | TKH-300HRE | TKH-300HR |
|---|---|---|---|---|---|---|
| FEEDER | Volume(m³) | 6.5 | ||||
| Feeding Height(mm) | 2870 | |||||
| Max Feed(mm) | 225 | |||||
| Processing Capacity(t/h) | 500 | |||||
| CRUSHER | Type | Single cylinder | Multi-cylinder | |||
| Vibrating Screen Length*Width(mm) | / | 1540*3600 | / | 1540*3600 | ||
| Layer Number Of Mesh | / | 1 | / | 1 | ||
| Discharge Range(mm) | 25-54 | 10-45 | ||||
| CONVEYOR | Main Conveyor Width(mm) | 1200 | ||||
| Width Of Conveyor Belt(mm) | 500 | |||||
| Return Conveyor Width(mm) | 500 | |||||
| Finished Conveyor Width(mm) | 1200 | |||||
| Finished Conveyor Stacking Height(mm) | 3419 | |||||
| PARAMETERS | Total Power(kW) | 308.7 | 338.7 | 308.7 | 338.7 | |
| Host Power(kW) | 250 | |||||
| Processing Capacity(t/h) | 290-495 | 150-430 | ||||
| Speed(km/h) | 0.6-1 | |||||
| Total Weight(t) | 52 | 57 | 55 | 64 | 60 | |
| Transportation Size(mm) | 13850*3200*3800 | 18357*3300*3800 | 14850*3200*3800 | 19247*3070*3731 | ||
High-class valve blocks + high-flow circuits for faster response and enhanced stability. Integrated discharge adjustment/tramp release/auto-clearing functions reduce maintenance time by 40%.
Temperature Controlled LubricationReal-time monitoring of oil pressure/flow/temperature with auto heating/cooling. Splash lubrication + multi-point protection for dual bearing safeguards.
Safety ProtectionInstant overload release with auto-reset function.
Optimized Crushing ChamberInter-particle crushing for superior product shape. 35% higher wear parts utilization with 50% less replacement loss.
Robust ConstructionOne-piece cast frame with box-section boom design for maximum strength. Multi-stage sealing system (U-T seals + spherical floating seals) ensures lubricant purity.
Smart Hydraulic ControlAuto-pressure regulation for locking/relief cylinders.

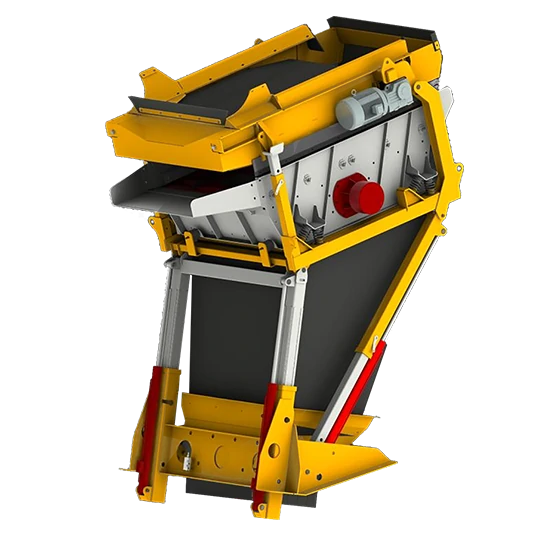

After passing through the small belt conveyor, materials are fed into independent pre-screening unit. Finished products that meet the required particle size are directly screened out and sent to the next process, while oversized materials are then enter the cone crusher for further crushing.
Advantages Of Screening Before CrushingScreen out a part of the finished products in advance, freeing up more crushing space for the main crusher and effectively increasing capacity by approximately 20%.
Fine powder materials are separated early, reducing wear on the crusher`s wearing parts and significantly extending their service life.

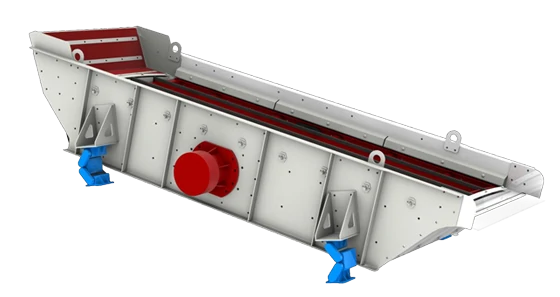

The vibrating screen is powered by a renowned-brand exciter, delivering greater vibration force, superior reliability, and extended service life.
With ample power reserves, the exciter allows adjustable vibration intensity to adapt to diverse working conditions.
Heavy-Duty Frame StructureThe overall steel structure is strong and can withstand long-term continuous work in harsh conditions without deformation, fatigue, or tearing, and has a longer service life.
Swiss-Imported ROSTA Rubber SpringThe Swiss-imported ROSTA rubber springs use high-quality imported rubber, which significantly reduces the lateral swinging vibration of the screen.
This allows the screen to start and stop more quickly, without the resonance phenomenon typical of conventional springs.
