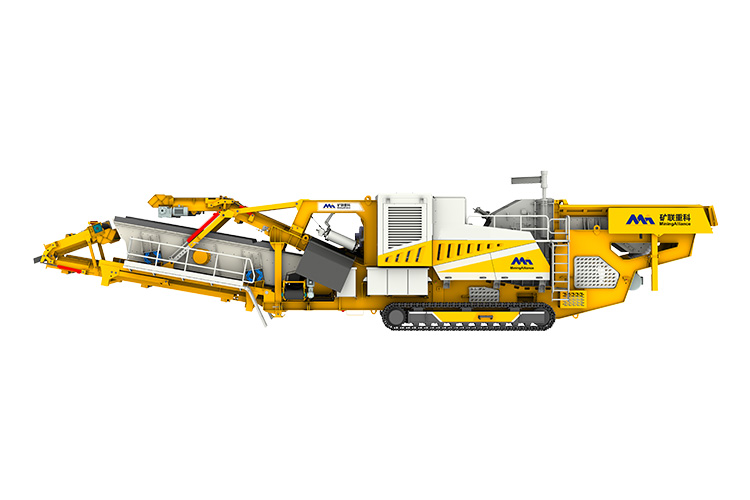

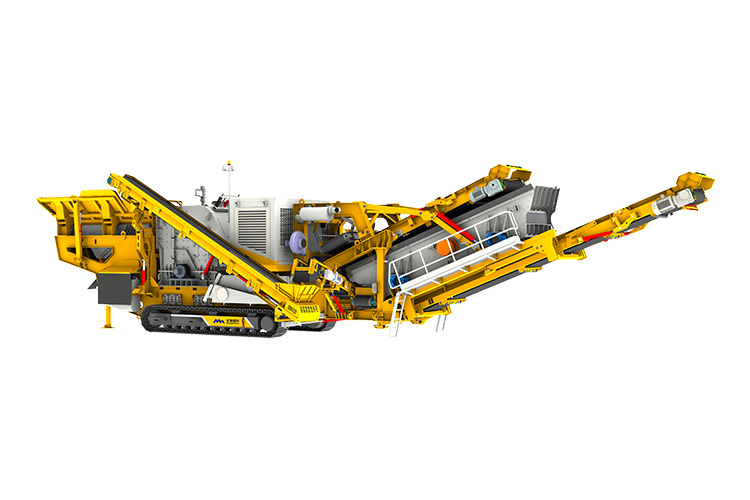

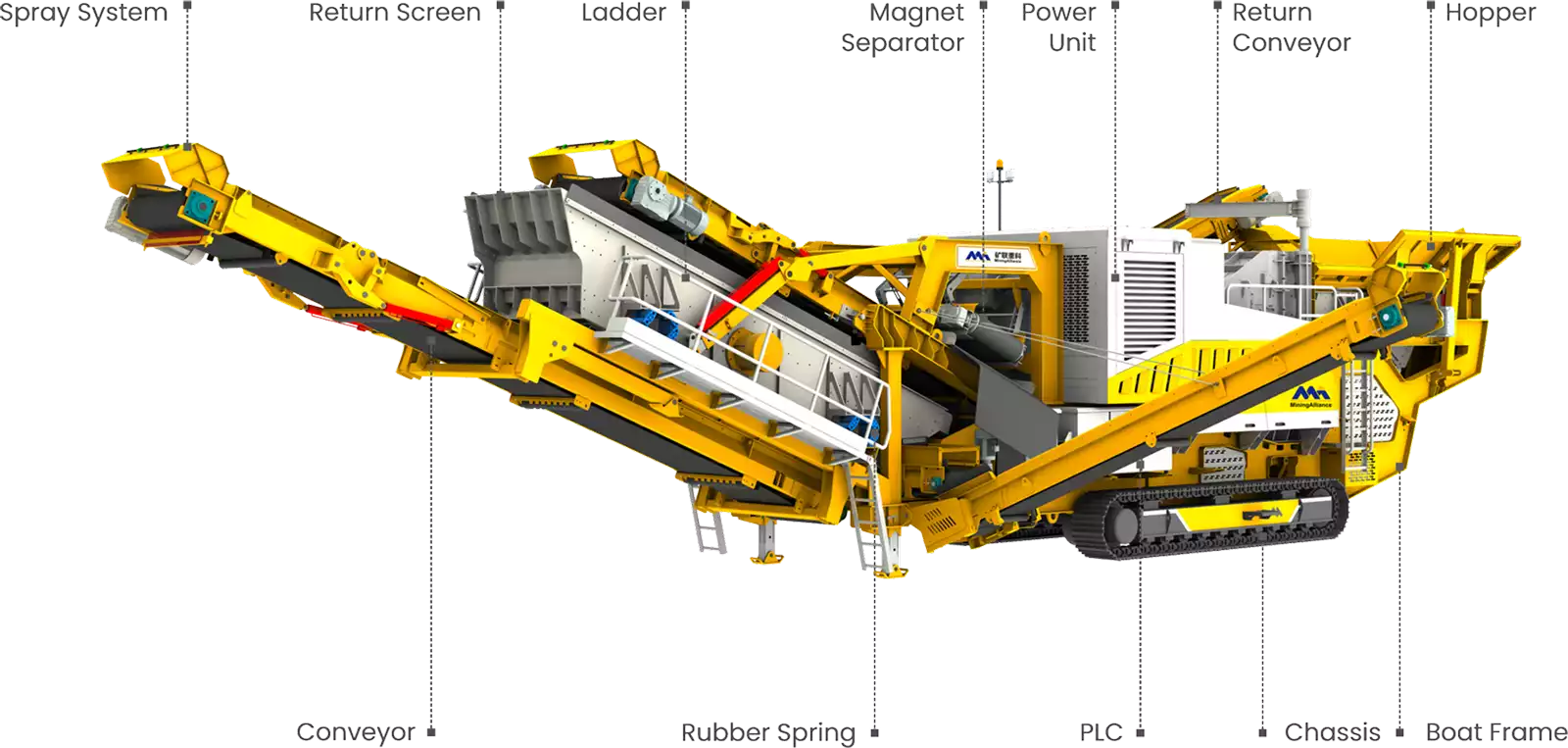

The MAM TKI series tracked mobile impact crusher uses a compact and efficient modular design with extensive hydraulic assistance, a return screening system, as well as iron remover, air separation, and spray devices. It can perform both primary and secondary crushing for medium-soft stones and construction waste. It has stable performance, excellent mobility, and superior particle shape.
| Model | / | TKI-150R | TKI-260R | TKI-350RE | TKI-350R | TKI-550 |
|---|---|---|---|---|---|---|
| FEEDER | Volume(m³) | 4 | 7 | 9 | ||
| Feeding Height(mm) | 4200 | 4250 | 4500 | |||
| Max Feed(mm) | 550 | 600 | 800 | |||
| Processing Capacity(t/h) | 200 | 300 | 400 | 400 | 600 | |
| CRUSHER | Type | MIX | MIX2 | MIX3 | MIX3 | MIX4 |
| Return Screen Length*Width(mm) | 3700*1200 | 3600*1540 | 5000*1740 | 5000*1740 | / | |
| Layer Number Of Mesh | 1 | / | ||||
| Discharge Range(mm) | 25-100 | |||||
| CONVEYOR | Main Conveyor Width(mm) | 1000 | 1200 | |||
| Transfer Conveyor Width(mm) | 500 | |||||
| Return Conveyor Width(mm) | 500 | |||||
| Finished Conveyor Width(mm) | 1000 | 1200 | ||||
| Finished Conveyor Stacking Height(mm) | 3200 | 3471 | 3449 | 3449 | 3200 | |
| PARAMETERS | Total Power(kw) | 217.2 | 265.6 | 347.2 | 347.2 | 415.7 |
| Host Power(kw) | 160 | 200 | 280 | 280 | 375 | |
| Processing Capacity(t/h) | 100-200 | 160-350 | 250-500 | 250-500 | 400-600 | |
| Speed(km/h) | 0.6-1 | |||||
| Total Weight(t) | 48 | 55 | 65 | 61 | 80 | |
| Transportation Size(mm) | 16600*3200*3800 | 18127*3626*3909 | 18882*3505*3872 | 18882*3505*3872 | 19600*3380*3800 | |

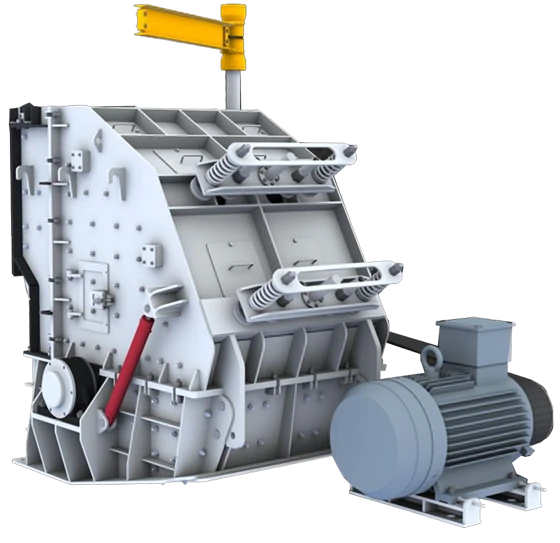

The heavy-duty rotor design provides a larger moment of inertia, resulting in greater crushing force.
The wedge blocks are securely fixed, ensuring they do not loosen during high-speed operation, guaranteeing stable and reliable performance.
The C-type hammer guarantees perpendicular impact between the material and the hammer, resulting in greater force and higher efficiency.
Fully Hydraulic AdjustmentThe impact crusher features fully hydraulic control for adjustment, with hydraulic cylinders assisting in regulating the discharge opening size. Hydraulic-assisted hood opening ensures convenient and efficient maintenance.
Reusable HammersThe symmetrically designed hammers can be turned around and used on the other side when one face is worn, reducing wear part costs.
Adopting independent feeder+independent pre-screening feeding, the pre-screening machine will screen out materials smaller than a certain specification, and then the materials will directly enter the main belt conveyor.
Preventing small pieces of material from entering the main machine, providing a larger crushing space for the main machine. The main machine has high working efficiency, less wear on wear parts, and can increase production by as much as 20%.
Customizable Grate Bar SpacingCustomers can customize the grate spacing according to the size of the finished material.
Equipped With Wear-resistant LiningThe places where the feeder contacts the material are all made of wear-resistant linings, which reduces the wear of the material on the feeder and increases the service life of the tracked impact crusher.
Pre-screened Materials Can Be Switched To OutputThe rocker-type double-dividing hopper switch is supported by a bearing seat and is flexible to rotate. By rotating forward, all the materials leaked by the pre-screening machine grate bars can be introduced into the main belt conveyor as finished material output. By rotating the rocker arm backward, the materials pre-screened by the energy bar fall into the side belt conveyor for output. Users can switch freely according to their needs.
Grate Bars Use Gradient V-shaped SpacingEffectively prevent material blockage.
The fixing method adopts an adjustable design, which can be easily cleaned when it is blocked by debris such as steel bars. And the fixing method is firm, stable and does not shake when working and walking.

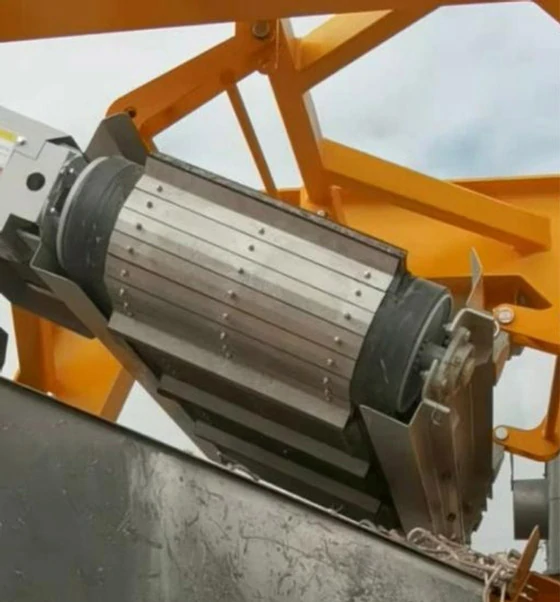

Ultra-Wide Permanent Magnet Iron RemoverHigh-intensity magnetic field for efficient ferrous metal removal. At the same time, the iron remover belt is equipped with stainless steel armor, installed above the return belt to effectively prevent iron pieces from damaging the tracked mobile impact crusher.
Height-Adjustable DesignThe fixture utilizes an up-down adjustable mechanism, allowing easy clearance of clogged debris (e.g., rebar) while maintaining secure fastening and stable, vibration-free operation during movement.
